Bring Your Own Cloud on AWS

This page covers running Akka Automated Operations (AAO) on AWS. For the architecture and concepts, start with the technical overview.

Download BYOC on AWS as a PDF, or the full overview.

The default multi-tenant architecture. Akka provisions a region into your VPC with public, private, and database subnets, and reaches it from the Federation Plane for control-plane operations.

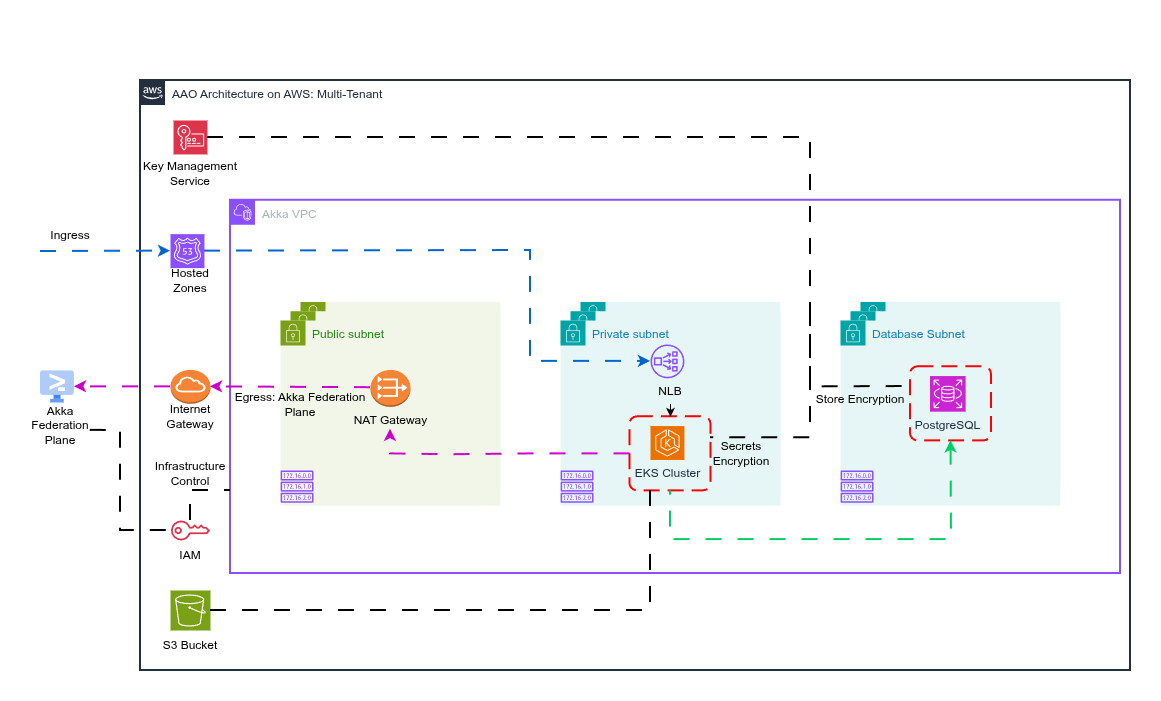

AAO on AWS: multi-tenant architecture
Figure 1. AAO on AWS: multi-tenant architecture (default)

AWS resources

AAO on AWS uses these AWS services:

  • AWS Identity and Access Management (IAM)

  • AWS RDS for PostgreSQL

  • AWS Elastic Kubernetes Service (EKS)

  • AWS Virtual Private Cloud (VPC)

  • AWS Elastic Load Balancing

  • AWS Route 53

  • AWS Simple Storage Service (S3)

  • AWS Key Management Service (KMS)

  • AWS Transit Gateway

Identity model

To begin, create a non-human privileged IAM role with the minimum permissions to set up and manage the Akka environment, plus a trust policy that lets the Federation Plane’s identity assume it. This role handles initial infrastructure bootstrapping, release deployments, and ongoing maintenance.

AAO uses four roles:

Role Responsibilities Who creates it

Deployment

Creation and management of infrastructure on AWS

akka-bootstrap

Editor

Management of infrastructure without delete permissions

You

Viewer

Read-only permissions for infrastructure

You

SRE

Identical to the Deployment role, for emergency response or upkeep

You

The exact IAM actions for each role are created and managed by akka-bootstrap and are the source of truth. Review the permission reference the utility generates rather than a copy here, so the permissions you grant always match what Akka runs. Within Kubernetes, Akka uses least-privilege access scoped to the Akka-managed namespaces and limits its access to customer-owned Kubernetes resources.

Installation

Prepare your AWS account with the akka-bootstrap utility, then Akka provisions the region. See Bring Your Own Cloud setup for the akka-bootstrap utility and the shared install flow.

Create a values.hcl file with your backend configuration and AWS region details:

inputs = {
  backend = {
    type = "s3"
    config = {
      bucket = "your-terraform-state-bucket"
      prefix = "akka-bootstrap"
    }
  }
  akka_regions = {
    aws = [
      {
        environment       = "prod"       # dev | stage | prod
        akka_region_name  = "aws-<tenant>-<tenant-env>-<region>"
        cloud_region_name = "<region>"
        profile           = "<profile>"
      }
    ]
    azure = []
    gcp   = []
  }
}

Then run the Terragrunt lifecycle:

terragrunt init     # initialize and validate the generated Terraform
terragrunt plan     # review the planned changes
terragrunt apply    # provision the IAM role, policies, and credentials

After a successful apply, attach the generated role ARN to your region request so the Federation Plane can assume it and manage resources in your account.

Amazon EKS

Managed Kubernetes hosts the Application Plane, with workloads spread across availability zones. Akka deploys operators for route management, elasticity, metadata sync, rolling deployment, certificate management, key rotation, and multi-region failover.

Private connectivity

By default, traffic between the region and your internal networks traverses the internet. To keep it private, AAO on AWS uses an AWS Transit Gateway to route region-to-internal traffic across accounts and VPCs. The per-flow detail is on the data flows page.

The Transit Gateway pattern:

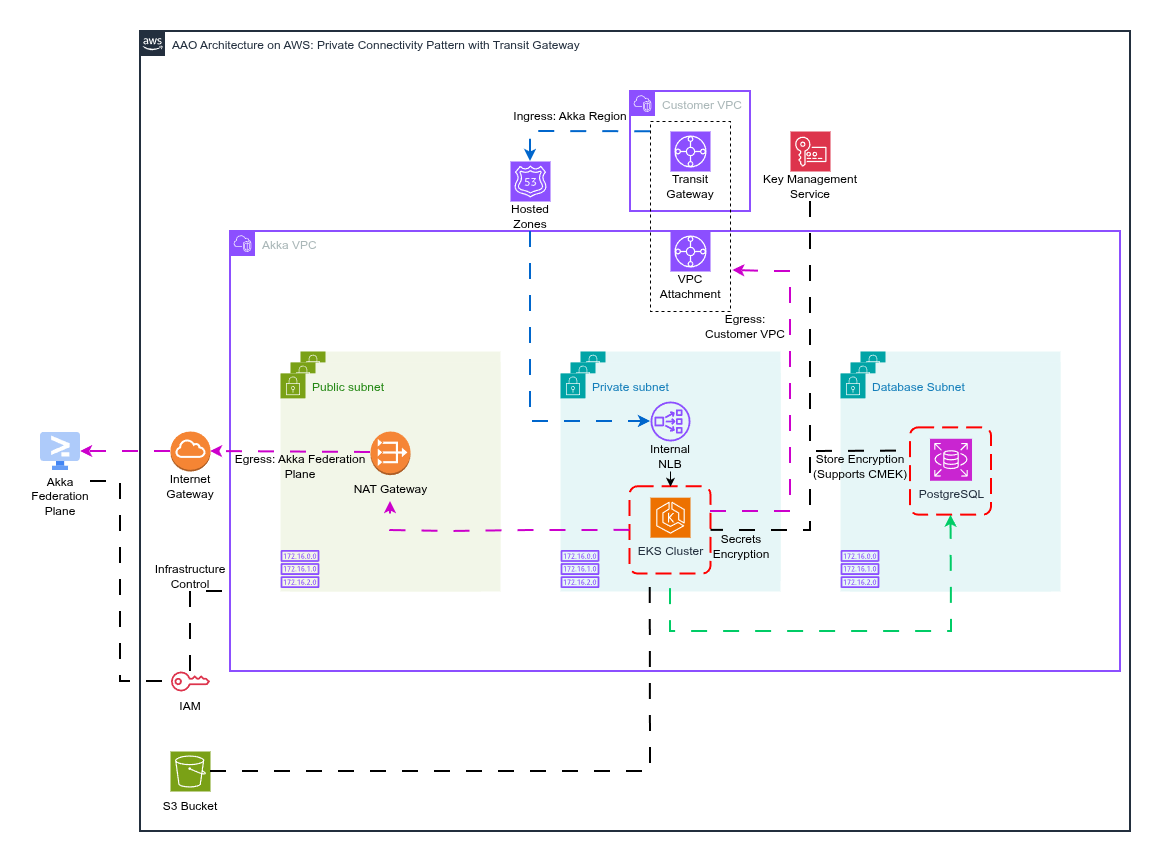

AAO on AWS: private connectivity with Transit Gateway
Figure 2. AAO on AWS: private connectivity with a Transit Gateway

A hub-and-spoke topology (private only, with platform images pulled from a container registry bucket):

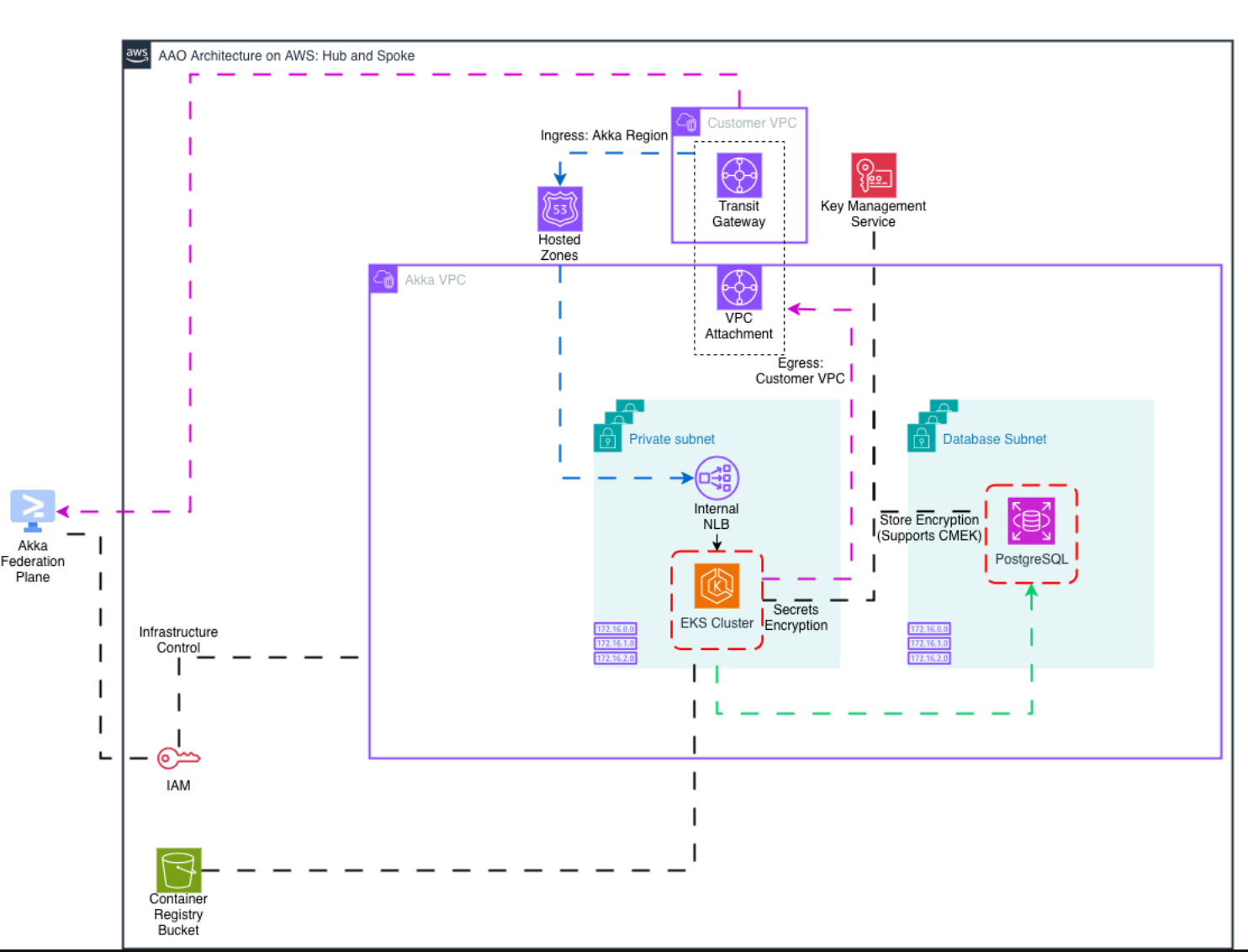

AAO on AWS: hub and spoke
Figure 3. AAO on AWS: hub-and-spoke topology

Bringing your own EKS cluster (BYOK8s)

If you provision the cluster yourself instead of having Akka provision into your account, see Akka Automated Operations on AWS with your own Kubernetes for the complete, self-contained guide (the shared requirements plus the AWS specifics).
