Cluster Usage

Preparing Your Project for Clustering

The Akka cluster is a separate jar file. Make sure that you have the following dependency in your project:

<dependency>
  <groupId>com.typesafe.akka</groupId>
  <artifactId>akka-cluster_2.10</artifactId>
  <version>2.3.16</version>
</dependency>

A Simple Cluster Example

The following configuration enables the Cluster extension to be used. It joins the cluster and an actor subscribes to cluster membership events and logs them.

The application.conf configuration looks like this:

akka {
  actor {
    provider = "akka.cluster.ClusterActorRefProvider"
  }
  remote {
    log-remote-lifecycle-events = off
    netty.tcp {
      hostname = "127.0.0.1"
      port = 0
    }
  }

  cluster {
    seed-nodes = [
      "akka.tcp://[email protected]:2551",
      "akka.tcp://[email protected]:2552"]

    auto-down-unreachable-after = 10s
  }
}

To enable cluster capabilities in your Akka project you should, at a minimum, add the Remoting settings, but with akka.cluster.ClusterActorRefProvider. The akka.cluster.seed-nodes should normally also be added to your application.conf file.

The seed nodes are configured contact points for initial, automatic, join of the cluster.

Note that if you are going to start the nodes on different machines you need to specify the ip-addresses or host names of the machines in application.conf instead of 127.0.0.1

An actor that uses the cluster extension may look like this:

package sample.cluster.simple;

import akka.actor.UntypedActor;
import akka.cluster.Cluster;
import akka.cluster.ClusterEvent;
import akka.cluster.ClusterEvent.MemberEvent;
import akka.cluster.ClusterEvent.MemberUp;
import akka.cluster.ClusterEvent.MemberRemoved;
import akka.cluster.ClusterEvent.UnreachableMember;
import akka.event.Logging;
import akka.event.LoggingAdapter;

public class SimpleClusterListener extends UntypedActor {
  LoggingAdapter log = Logging.getLogger(getContext().system(), this);
  Cluster cluster = Cluster.get(getContext().system());

  //subscribe to cluster changes
  @Override
  public void preStart() {
    //#subscribe
    cluster.subscribe(getSelf(), ClusterEvent.initialStateAsEvents(),
        MemberEvent.class, UnreachableMember.class);
    //#subscribe
  }

  //re-subscribe when restart
  @Override
  public void postStop() {
    cluster.unsubscribe(getSelf());
  }

  @Override
  public void onReceive(Object message) {
    if (message instanceof MemberUp) {
      MemberUp mUp = (MemberUp) message;
      log.info("Member is Up: {}", mUp.member());

    } else if (message instanceof UnreachableMember) {
      UnreachableMember mUnreachable = (UnreachableMember) message;
      log.info("Member detected as unreachable: {}", mUnreachable.member());

    } else if (message instanceof MemberRemoved) {
      MemberRemoved mRemoved = (MemberRemoved) message;
      log.info("Member is Removed: {}", mRemoved.member());

    } else if (message instanceof MemberEvent) {
      // ignore

    } else {
      unhandled(message);
    }

  }
}

The actor registers itself as subscriber of certain cluster events. It receives events corresponding to the current state of the cluster when the subscription starts and then it receives events for changes that happen in the cluster.

The easiest way to run this example yourself is to download Typesafe Activator and open the tutorial named Akka Cluster Samples with Java. It contains instructions of how to run the SimpleClusterApp.

Joining to Seed Nodes

You may decide if joining to the cluster should be done manually or automatically to configured initial contact points, so-called seed nodes. When a new node is started it sends a message to all seed nodes and then sends join command to the one that answers first. If no one of the seed nodes replied (might not be started yet) it retries this procedure until successful or shutdown.

You define the seed nodes in the Configuration file (application.conf):

akka.cluster.seed-nodes = [
  "akka.tcp://ClusterSystem@host1:2552",
  "akka.tcp://ClusterSystem@host2:2552"]

This can also be defined as Java system properties when starting the JVM using the following syntax:

-Dakka.cluster.seed-nodes.0=akka.tcp://ClusterSystem@host1:2552
-Dakka.cluster.seed-nodes.1=akka.tcp://ClusterSystem@host2:2552

The seed nodes can be started in any order and it is not necessary to have all seed nodes running, but the node configured as the first element in the seed-nodes configuration list must be started when initially starting a cluster, otherwise the other seed-nodes will not become initialized and no other node can join the cluster. The reason for the special first seed node is to avoid forming separated islands when starting from an empty cluster. It is quickest to start all configured seed nodes at the same time (order doesn't matter), otherwise it can take up to the configured seed-node-timeout until the nodes can join.

Once more than two seed nodes have been started it is no problem to shut down the first seed node. If the first seed node is restarted, it will first try to join the other seed nodes in the existing cluster.

If you don't configure seed nodes you need to join the cluster programmatically or manually.

Manual joining can be performed by using ref:cluster_jmx_java or Command Line Management. Joining programatically can be performed with Cluster.get(system).join.

You can join to any node in the cluster. It does not have to be configured as a seed node. Note that you can only join to an existing cluster member, which means that for bootstrapping some node must join itself.

You may also use Cluster.get(system).joinSeedNodes to join programmatically, which is attractive when dynamically discovering other nodes at startup by using some external tool or API. When using joinSeedNodes you should not include the node itself except for the node that is supposed to be the first seed node, and that should be placed first in parameter to joinSeedNodes.

Unsuccessful join attempts are automatically retried after the time period defined in configuration property retry-unsuccessful-join-after. When using seed-nodes this means that a new seed node is picked. When joining manually or programatically this means that the last join request is retried. Retries can be disabled by setting the property to off.

An actor system can only join a cluster once. Additional attempts will be ignored. When it has successfully joined it must be restarted to be able to join another cluster or to join the same cluster again. It can use the same host name and port after the restart, but it must have been removed from the cluster before the join request is accepted.

Automatic vs. Manual Downing

When a member is considered by the failure detector to be unreachable the leader is not allowed to perform its duties, such as changing status of new joining members to 'Up'. The node must first become reachable again, or the status of the unreachable member must be changed to 'Down'. Changing status to 'Down' can be performed automatically or manually. By default it must be done manually, using JMX or Command Line Management.

It can also be performed programatically with Cluster.get(system).down(address).

You can enable automatic downing with configuration:

akka.cluster.auto-down-unreachable-after = 120s

This means that the cluster leader member will change the unreachable node status to down automatically after the configured time of unreachability.

Be aware of that using auto-down implies that two separate clusters will automatically be formed in case of network partition. That might be desired by some applications but not by others.

Leaving

There are two ways to remove a member from the cluster.

You can just stop the actor system (or the JVM process). It will be detected as unreachable and removed after the automatic or manual downing as described above.

A more graceful exit can be performed if you tell the cluster that a node shall leave. This can be performed using JMX or Command Line Management. It can also be performed programatically with Cluster.get(system).leave(address).

Note that this command can be issued to any member in the cluster, not necessarily the one that is leaving. The cluster extension, but not the actor system or JVM, of the leaving member will be shutdown after the leader has changed status of the member to Exiting. Thereafter the member will be removed from the cluster. Normally this is handled automatically, but in case of network failures during this process it might still be necessary to set the node’s status to Down in order to complete the removal.

Subscribe to Cluster Events

You can subscribe to change notifications of the cluster membership by using Cluster.get(system).subscribe.

cluster.subscribe(getSelf(), MemberEvent.class, UnreachableMember.class);

A snapshot of the full state, akka.cluster.ClusterEvent.CurrentClusterState, is sent to the subscriber as the first message, followed by events for incremental updates.

Note that you may receive an empty CurrentClusterState, containing no members, if you start the subscription before the initial join procedure has completed. This is expected behavior. When the node has been accepted in the cluster you will receive MemberUp for that node, and other nodes.

If you find it inconvenient to handle the CurrentClusterState you can use ClusterEvent.initialStateAsEvents() as parameter to subscribe. That means that instead of receiving CurrentClusterState as the first message you will receive the events corresponding to the current state to mimic what you would have seen if you were listening to the events when they occurred in the past. Note that those initial events only correspond to the current state and it is not the full history of all changes that actually has occurred in the cluster.

cluster.subscribe(getSelf(), ClusterEvent.initialStateAsEvents(),
    MemberEvent.class, UnreachableMember.class);

The events to track the life-cycle of members are:

• ClusterEvent.MemberUp - A new member has joined the cluster and its status has been changed to Up.
• ClusterEvent.MemberExited - A member is leaving the cluster and its status has been changed to Exiting Note that the node might already have been shutdown when this event is published on another node.
• ClusterEvent.MemberRemoved - Member completely removed from the cluster.
• ClusterEvent.UnreachableMember - A member is considered as unreachable, detected by the failure detector of at least one other node.
• ClusterEvent.ReachableMember - A member is considered as reachable again, after having been unreachable. All nodes that previously detected it as unreachable has detected it as reachable again.

There are more types of change events, consult the API documentation of classes that extends akka.cluster.ClusterEvent.ClusterDomainEvent for details about the events.

Instead of subscribing to cluster events it can sometimes be convenient to only get the full membership state with Cluster.get(system).state(). Note that this state is not necessarily in sync with the events published to a cluster subscription.

public interface TransformationMessages {

  public static class TransformationJob implements Serializable {
    private final String text;

    public TransformationJob(String text) {
      this.text = text;
    }

    public String getText() {
      return text;
    }
  }

  public static class TransformationResult implements Serializable {
    private final String text;

    public TransformationResult(String text) {
      this.text = text;
    }

    public String getText() {
      return text;
    }

    @Override
    public String toString() {
      return "TransformationResult(" + text + ")";
    }
  }

  public static class JobFailed implements Serializable {
    private final String reason;
    private final TransformationJob job;

    public JobFailed(String reason, TransformationJob job) {
      this.reason = reason;
      this.job = job;
    }

    public String getReason() {
      return reason;
    }

    public TransformationJob getJob() {
      return job;
    }

    @Override
    public String toString() {
      return "JobFailed(" + reason + ")";
    }
  }

  public static final String BACKEND_REGISTRATION = "BackendRegistration";

}

public class TransformationBackend extends UntypedActor {

  Cluster cluster = Cluster.get(getContext().system());

  //subscribe to cluster changes, MemberUp
  @Override
  public void preStart() {
    cluster.subscribe(getSelf(), MemberUp.class);
  }

  //re-subscribe when restart
  @Override
  public void postStop() {
    cluster.unsubscribe(getSelf());
  }

  @Override
  public void onReceive(Object message) {
    if (message instanceof TransformationJob) {
      TransformationJob job = (TransformationJob) message;
      getSender().tell(new TransformationResult(job.getText().toUpperCase()),
          getSelf());

    } else if (message instanceof CurrentClusterState) {
      CurrentClusterState state = (CurrentClusterState) message;
      for (Member member : state.getMembers()) {
        if (member.status().equals(MemberStatus.up())) {
          register(member);
        }
      }

    } else if (message instanceof MemberUp) {
      MemberUp mUp = (MemberUp) message;
      register(mUp.member());

    } else {
      unhandled(message);
    }
  }

  void register(Member member) {
    if (member.hasRole("frontend"))
      getContext().actorSelection(member.address() + "/user/frontend").tell(
          BACKEND_REGISTRATION, getSelf());
  }
}

public class TransformationFrontend extends UntypedActor {

  List<ActorRef> backends = new ArrayList<ActorRef>();
  int jobCounter = 0;

  @Override
  public void onReceive(Object message) {
    if ((message instanceof TransformationJob) && backends.isEmpty()) {
      TransformationJob job = (TransformationJob) message;
      getSender().tell(
          new JobFailed("Service unavailable, try again later", job),
          getSender());

    } else if (message instanceof TransformationJob) {
      TransformationJob job = (TransformationJob) message;
      jobCounter++;
      backends.get(jobCounter % backends.size())
          .forward(job, getContext());

    } else if (message.equals(BACKEND_REGISTRATION)) {
      getContext().watch(getSender());
      backends.add(getSender());

    } else if (message instanceof Terminated) {
      Terminated terminated = (Terminated) message;
      backends.remove(terminated.getActor());

    } else {
      unhandled(message);
    }
  }

}

Node Roles

Not all nodes of a cluster need to perform the same function: there might be one sub-set which runs the web front-end, one which runs the data access layer and one for the number-crunching. Deployment of actors—for example by cluster-aware routers—can take node roles into account to achieve this distribution of responsibilities.

The roles of a node is defined in the configuration property named akka.cluster.roles and it is typically defined in the start script as a system property or environment variable.

The roles of the nodes is part of the membership information in MemberEvent that you can subscribe to.

How To Startup when Cluster Size Reached

A common use case is to start actors after the cluster has been initialized, members have joined, and the cluster has reached a certain size.

With a configuration option you can define required number of members before the leader changes member status of 'Joining' members to 'Up'.

akka.cluster.min-nr-of-members = 3

In a similar way you can define required number of members of a certain role before the leader changes member status of 'Joining' members to 'Up'.

akka.cluster.role {
  frontend.min-nr-of-members = 1
  backend.min-nr-of-members = 2
}

You can start the actors in a registerOnMemberUp callback, which will be invoked when the current member status is changed to 'Up', i.e. the cluster has at least the defined number of members.

Cluster.get(system).registerOnMemberUp(new Runnable() {
  @Override
  public void run() {
    system.actorOf(Props.create(FactorialFrontend.class, upToN, true),
        "factorialFrontend");
  }
});

This callback can be used for other things than starting actors.

Cluster Singleton

For some use cases it is convenient and sometimes also mandatory to ensure that you have exactly one actor of a certain type running somewhere in the cluster.

This can be implemented by subscribing to member events, but there are several corner cases to consider. Therefore, this specific use case is made easily accessible by the Cluster Singleton in the contrib module.

Cluster Sharding

Distributes actors across several nodes in the cluster and supports interaction with the actors using their logical identifier, but without having to care about their physical location in the cluster.

See Cluster Sharding in the contrib module.

Distributed Publish Subscribe

Publish-subscribe messaging between actors in the cluster, and point-to-point messaging using the logical path of the actors, i.e. the sender does not have to know on which node the destination actor is running.

See Distributed Publish Subscribe in Cluster in the contrib module.

Cluster Client

Communication from an actor system that is not part of the cluster to actors running somewhere in the cluster. The client does not have to know on which node the destination actor is running.

See Cluster Client in the contrib module.

Failure Detector

In a cluster each node is monitored by a few (default maximum 5) other nodes, and when any of these detects the node as unreachable that information will spread to the rest of the cluster through the gossip. In other words, only one node needs to mark a node unreachable to have the rest of the cluster mark that node unreachable.

The failure detector will also detect if the node becomes reachable again. When all nodes that monitored the unreachable node detects it as reachable again the cluster, after gossip dissemination, will consider it as reachable.

If system messages cannot be delivered to a node it will be quarantined and then it cannot come back from unreachable. This can happen if the there are too many unacknowledged system messages (e.g. watch, Terminated, remote actor deployment, failures of actors supervised by remote parent). Then the node needs to be moved to the down or removed states and the actor system must be restarted before it can join the cluster again.

The nodes in the cluster monitor each other by sending heartbeats to detect if a node is unreachable from the rest of the cluster. The heartbeat arrival times is interpreted by an implementation of The Phi Accrual Failure Detector.

The suspicion level of failure is given by a value called phi. The basic idea of the phi failure detector is to express the value of phi on a scale that is dynamically adjusted to reflect current network conditions.

The value of phi is calculated as:

phi = -log10(1 - F(timeSinceLastHeartbeat))

where F is the cumulative distribution function of a normal distribution with mean and standard deviation estimated from historical heartbeat inter-arrival times.

In the Configuration you can adjust the akka.cluster.failure-detector.threshold to define when a phi value is considered to be a failure.

A low threshold is prone to generate many false positives but ensures a quick detection in the event of a real crash. Conversely, a high threshold generates fewer mistakes but needs more time to detect actual crashes. The default threshold is 8 and is appropriate for most situations. However in cloud environments, such as Amazon EC2, the value could be increased to 12 in order to account for network issues that sometimes occur on such platforms.

The following chart illustrates how phi increase with increasing time since the previous heartbeat.

Phi is calculated from the mean and standard deviation of historical inter arrival times. The previous chart is an example for standard deviation of 200 ms. If the heartbeats arrive with less deviation the curve becomes steeper, i.e. it is possible to determine failure more quickly. The curve looks like this for a standard deviation of 100 ms.

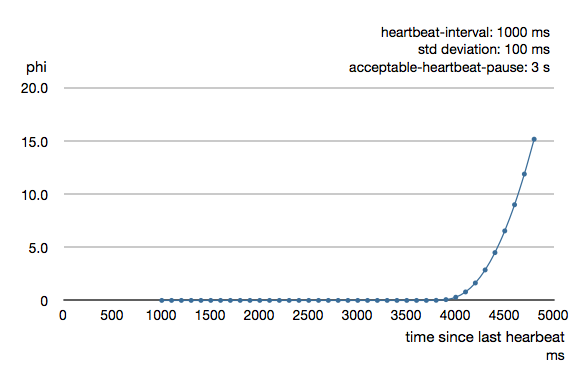

To be able to survive sudden abnormalities, such as garbage collection pauses and transient network failures the failure detector is configured with a margin, akka.cluster.failure-detector.acceptable-heartbeat-pause. You may want to adjust the Configuration of this depending on you environment. This is how the curve looks like for acceptable-heartbeat-pause configured to 3 seconds.

Death watch uses the cluster failure detector for nodes in the cluster, i.e. it detects network failures and JVM crashes, in addition to graceful termination of watched actor. Death watch generates the Terminated message to the watching actor when the unreachable cluster node has been downed and removed.

If you encounter suspicious false positives when the system is under load you should define a separate dispatcher for the cluster actors as described in Cluster Dispatcher.

Cluster Aware Routers

All routers can be made aware of member nodes in the cluster, i.e. deploying new routees or looking up routees on nodes in the cluster. When a node becomes unreachable or leaves the cluster the routees of that node are automatically unregistered from the router. When new nodes join the cluster additional routees are added to the router, according to the configuration. Routees are also added when a node becomes reachable again, after having been unreachable.

There are two distinct types of routers.

• Group - router that sends messages to the specified path using actor selection The routees can be shared between routers running on different nodes in the cluster. One example of a use case for this type of router is a service running on some backend nodes in the cluster and used by routers running on front-end nodes in the cluster.
• Pool - router that creates routees as child actors and deploys them on remote nodes. Each router will have its own routee instances. For example, if you start a router on 3 nodes in a 10 nodes cluster you will have 30 routee actors in total if the router is configured to use one inctance per node. The routees created by the different routers will not be shared between the routers. One example of a use case for this type of router is a single master that coordinate jobs and delegates the actual work to routees running on other nodes in the cluster.

akka.actor.deployment {
  /statsService/workerRouter {
      router = consistent-hashing-group
      nr-of-instances = 100
      routees.paths = ["/user/statsWorker"]
      cluster {
        enabled = on
        allow-local-routees = on
        use-role = compute
      }
    }
}

int totalInstances = 100;
Iterable<String> routeesPaths = Collections
    .singletonList("/user/statsWorker");
boolean allowLocalRoutees = true;
String useRole = "compute";
ActorRef workerRouter = getContext().actorOf(
    new ClusterRouterGroup(new ConsistentHashingGroup(routeesPaths),
        new ClusterRouterGroupSettings(totalInstances, routeesPaths,
            allowLocalRoutees, useRole)).props(), "workerRouter2");

public interface StatsMessages {

  public static class StatsJob implements Serializable {
    private final String text;

    public StatsJob(String text) {
      this.text = text;
    }

    public String getText() {
      return text;
    }
  }

  public static class StatsResult implements Serializable {
    private final double meanWordLength;

    public StatsResult(double meanWordLength) {
      this.meanWordLength = meanWordLength;
    }

    public double getMeanWordLength() {
      return meanWordLength;
    }

    @Override
    public String toString() {
      return "meanWordLength: " + meanWordLength;
    }
  }

  public static class JobFailed implements Serializable {
    private final String reason;

    public JobFailed(String reason) {
      this.reason = reason;
    }

    public String getReason() {
      return reason;
    }

    @Override
    public String toString() {
      return "JobFailed(" + reason + ")";
    }
  }

}

public class StatsWorker extends UntypedActor {

  Map<String, Integer> cache = new HashMap<String, Integer>();

  @Override
  public void onReceive(Object message) {
    if (message instanceof String) {
      String word = (String) message;
      Integer length = cache.get(word);
      if (length == null) {
        length = word.length();
        cache.put(word, length);
      }
      getSender().tell(length, getSelf());

    } else {
      unhandled(message);
    }
  }

}

public class StatsService extends UntypedActor {

  // This router is used both with lookup and deploy of routees. If you
  // have a router with only lookup of routees you can use Props.empty()
  // instead of Props.create(StatsWorker.class).
  ActorRef workerRouter = getContext().actorOf(
      FromConfig.getInstance().props(Props.create(StatsWorker.class)),
      "workerRouter");

  @Override
  public void onReceive(Object message) {
    if (message instanceof StatsJob) {
      StatsJob job = (StatsJob) message;
      if (job.getText().equals("")) {
        unhandled(message);
      } else {
        final String[] words = job.getText().split(" ");
        final ActorRef replyTo = getSender();

        // create actor that collects replies from workers
        ActorRef aggregator = getContext().actorOf(
            Props.create(StatsAggregator.class, words.length, replyTo));

        // send each word to a worker
        for (String word : words) {
          workerRouter.tell(new ConsistentHashableEnvelope(word, word),
              aggregator);
        }
      }

    } else {
      unhandled(message);
    }
  }
}

public class StatsAggregator extends UntypedActor {

  final int expectedResults;
  final ActorRef replyTo;
  final List<Integer> results = new ArrayList<Integer>();

  public StatsAggregator(int expectedResults, ActorRef replyTo) {
    this.expectedResults = expectedResults;
    this.replyTo = replyTo;
  }

  @Override
  public void preStart() {
    getContext().setReceiveTimeout(Duration.create(3, TimeUnit.SECONDS));
  }

  @Override
  public void onReceive(Object message) {
    if (message instanceof Integer) {
      Integer wordCount = (Integer) message;
      results.add(wordCount);
      if (results.size() == expectedResults) {
        int sum = 0;
        for (int c : results)
          sum += c;
        double meanWordLength = ((double) sum) / results.size();
        replyTo.tell(new StatsResult(meanWordLength), getSelf());
        getContext().stop(getSelf());
      }

    } else if (message == ReceiveTimeout.getInstance()) {
      replyTo.tell(new JobFailed("Service unavailable, try again later"),
          getSelf());
      getContext().stop(getSelf());

    } else {
      unhandled(message);
    }
  }

}

akka.actor.deployment {
  /statsService/workerRouter {
    router = consistent-hashing-group
    nr-of-instances = 100
    routees.paths = ["/user/statsWorker"]
    cluster {
      enabled = on
      allow-local-routees = on
      use-role = compute
    }
  }
}

akka.actor.deployment {
  /singleton/statsService/workerRouter {
      router = consistent-hashing-pool
      nr-of-instances = 100
      cluster {
        enabled = on
        max-nr-of-instances-per-node = 3
        allow-local-routees = on
        use-role = compute
      }
    }
}

int totalInstances = 100;
int maxInstancesPerNode = 3;
boolean allowLocalRoutees = false;
String useRole = "compute";
ActorRef workerRouter = getContext().actorOf(
    new ClusterRouterPool(new ConsistentHashingPool(0),
        new ClusterRouterPoolSettings(totalInstances, maxInstancesPerNode,
            allowLocalRoutees, useRole)).props(Props
        .create(StatsWorker.class)), "workerRouter3");

system.actorOf(ClusterSingletonManager.defaultProps(
    Props.create(StatsService.class), "statsService",
    PoisonPill.getInstance(), "compute"), "singleton");

system.actorOf(ClusterSingletonProxy.defaultProps("/user/singleton/statsService",
  "compute"), "statsServiceProxy");

akka.actor.deployment {
  /singleton/statsService/workerRouter {
    router = consistent-hashing-pool
    nr-of-instances = 100
    cluster {
      enabled = on
      max-nr-of-instances-per-node = 3
      allow-local-routees = on
      use-role = compute
    }
  }
}

Cluster Metrics

The member nodes of the cluster collects system health metrics and publishes that to other nodes and to registered subscribers. This information is primarily used for load-balancing routers.

<dependency>
  <groupId>org.fusesource</groupId>
  <artifactId>sigar</artifactId>
  <version>1.6.4</version>
</dependency>

public class FactorialBackend extends UntypedActor {

  @Override
  public void onReceive(Object message) {
    if (message instanceof Integer) {
      final Integer n = (Integer) message;
      Future<BigInteger> f = future(new Callable<BigInteger>() {
        public BigInteger call() {
          return factorial(n);
        }
      }, getContext().dispatcher());

      Future<FactorialResult> result = f.map(
          new Mapper<BigInteger, FactorialResult>() {
            public FactorialResult apply(BigInteger factorial) {
              return new FactorialResult(n, factorial);
            }
          }, getContext().dispatcher());

      pipe(result, getContext().dispatcher()).to(getSender());

    } else {
      unhandled(message);
    }
  }

  BigInteger factorial(int n) {
    BigInteger acc = BigInteger.ONE;
    for (int i = 1; i <= n; ++i) {
      acc = acc.multiply(BigInteger.valueOf(i));
    }
    return acc;
  }
}

public class FactorialFrontend extends UntypedActor {
  final int upToN;
  final boolean repeat;

  LoggingAdapter log = Logging.getLogger(getContext().system(), this);

  ActorRef backend = getContext().actorOf(FromConfig.getInstance().props(),
      "factorialBackendRouter");

  public FactorialFrontend(int upToN, boolean repeat) {
    this.upToN = upToN;
    this.repeat = repeat;
  }

  @Override
  public void preStart() {
    sendJobs();
    getContext().setReceiveTimeout(Duration.create(10, TimeUnit.SECONDS));
  }

  @Override
  public void onReceive(Object message) {
    if (message instanceof FactorialResult) {
      FactorialResult result = (FactorialResult) message;
      if (result.n == upToN) {
        log.debug("{}! = {}", result.n, result.factorial);
        if (repeat)
          sendJobs();
        else
          getContext().stop(getSelf());
      }

    } else if (message instanceof ReceiveTimeout) {
      log.info("Timeout");
      sendJobs();

    } else {
      unhandled(message);
    }
  }

  void sendJobs() {
    log.info("Starting batch of factorials up to [{}]", upToN);
    for (int n = 1; n <= upToN; n++) {
      backend.tell(n, getSelf());
    }
  }

}

akka.actor.deployment {
  /factorialFrontend/factorialBackendRouter = {
    router = adaptive-group
    # metrics-selector = heap
    # metrics-selector = load
    # metrics-selector = cpu
    metrics-selector = mix
    nr-of-instances = 100
    routees.paths = ["/user/factorialBackend"]
    cluster {
      enabled = on
      use-role = backend
      allow-local-routees = off
    }
  }
}

int totalInstances = 100;
Iterable<String> routeesPaths = Arrays.asList("/user/factorialBackend", "");
boolean allowLocalRoutees = true;
String useRole = "backend";
ActorRef backend = getContext().actorOf(
    new ClusterRouterGroup(new AdaptiveLoadBalancingGroup(
        HeapMetricsSelector.getInstance(), Collections.<String> emptyList()),
        new ClusterRouterGroupSettings(totalInstances, routeesPaths,
            allowLocalRoutees, useRole)).props(), "factorialBackendRouter2");

int totalInstances = 100;
int maxInstancesPerNode = 3;
boolean allowLocalRoutees = false;
String useRole = "backend";
ActorRef backend = getContext().actorOf(
    new ClusterRouterPool(new AdaptiveLoadBalancingPool(
        SystemLoadAverageMetricsSelector.getInstance(), 0),
        new ClusterRouterPoolSettings(totalInstances, maxInstancesPerNode,
            allowLocalRoutees, useRole)).props(Props
        .create(FactorialBackend.class)), "factorialBackendRouter3");

import akka.actor.UntypedActor;
import akka.cluster.Cluster;
import akka.cluster.ClusterEvent.ClusterMetricsChanged;
import akka.cluster.ClusterEvent.CurrentClusterState;
import akka.cluster.NodeMetrics;
import akka.cluster.StandardMetrics;
import akka.cluster.StandardMetrics.HeapMemory;
import akka.cluster.StandardMetrics.Cpu;
import akka.event.Logging;
import akka.event.LoggingAdapter;

public class MetricsListener extends UntypedActor {
  LoggingAdapter log = Logging.getLogger(getContext().system(), this);

  Cluster cluster = Cluster.get(getContext().system());

  //subscribe to ClusterMetricsChanged
  @Override
  public void preStart() {
    cluster.subscribe(getSelf(), ClusterMetricsChanged.class);
  }

  //re-subscribe when restart
  @Override
  public void postStop() {
    cluster.unsubscribe(getSelf());
  }


  @Override
  public void onReceive(Object message) {
    if (message instanceof ClusterMetricsChanged) {
      ClusterMetricsChanged clusterMetrics = (ClusterMetricsChanged) message;
      for (NodeMetrics nodeMetrics : clusterMetrics.getNodeMetrics()) {
        if (nodeMetrics.address().equals(cluster.selfAddress())) {
          logHeap(nodeMetrics);
          logCpu(nodeMetrics);
        }
      }

    } else if (message instanceof CurrentClusterState) {
      // ignore

    } else {
      unhandled(message);
    }
  }

  void logHeap(NodeMetrics nodeMetrics) {
    HeapMemory heap = StandardMetrics.extractHeapMemory(nodeMetrics);
    if (heap != null) {
      log.info("Used heap: {} MB", ((double) heap.used()) / 1024 / 1024);
    }
  }

  void logCpu(NodeMetrics nodeMetrics) {
    Cpu cpu = StandardMetrics.extractCpu(nodeMetrics);
    if (cpu != null && cpu.systemLoadAverage().isDefined()) {
      log.info("Load: {} ({} processors)", cpu.systemLoadAverage().get(),
        cpu.processors());
    }
  }

}

JMX

Information and management of the cluster is available as JMX MBeans with the root name akka.Cluster. The JMX information can be displayed with an ordinary JMX console such as JConsole or JVisualVM.

From JMX you can:

• see what members that are part of the cluster
• see status of this node
• join this node to another node in cluster
• mark any node in the cluster as down
• tell any node in the cluster to leave

Member nodes are identified by their address, in format akka.<protocol>://<actor-system-name>@<hostname>:<port>.

Command Line Management

The cluster can be managed with the script bin/akka-cluster provided in the Akka distribution.

Run it without parameters to see instructions about how to use the script:

Usage: bin/akka-cluster <node-hostname> <jmx-port> <command> ...

Supported commands are:
           join <node-url> - Sends request a JOIN node with the specified URL
          leave <node-url> - Sends a request for node with URL to LEAVE the cluster
           down <node-url> - Sends a request for marking node with URL as DOWN
             member-status - Asks the member node for its current status
                   members - Asks the cluster for addresses of current members
               unreachable - Asks the cluster for addresses of unreachable members
            cluster-status - Asks the cluster for its current status (member ring,
                             unavailable nodes, meta data etc.)
                    leader - Asks the cluster who the current leader is
              is-singleton - Checks if the cluster is a singleton cluster (single
                             node cluster)
              is-available - Checks if the member node is available
Where the <node-url> should be on the format of
  'akka.<protocol>://<actor-system-name>@<hostname>:<port>'

Examples: bin/akka-cluster localhost 9999 is-available
          bin/akka-cluster localhost 9999 join akka.tcp://MySystem@darkstar:2552
          bin/akka-cluster localhost 9999 cluster-status

To be able to use the script you must enable remote monitoring and management when starting the JVMs of the cluster nodes, as described in Monitoring and Management Using JMX Technology

Example of system properties to enable remote monitoring and management:

java -Dcom.sun.management.jmxremote.port=9999 \
-Dcom.sun.management.jmxremote.authenticate=false \
-Dcom.sun.management.jmxremote.ssl=false

Configuration

There are several configuration properties for the cluster. We refer to the reference configuration for more information.

akka.cluster.log-info = off

akka.cluster.use-dispatcher = cluster-dispatcher

cluster-dispatcher {
  type = "Dispatcher"
  executor = "fork-join-executor"
  fork-join-executor {
    parallelism-min = 5
    parallelism-max = 5
  }
}
