Dispatchers

Dependency

Dispatchers are part of core akka, which means that they are part of the akka-actor dependency:

sbt

libraryDependencies += "com.typesafe.akka" %% "akka-actor" % "2.5.32"

Maven

<dependencies>
  <dependency>
    <groupId>com.typesafe.akka</groupId>
    <artifactId>akka-actor_2.12</artifactId>
    <version>2.5.32</version>
  </dependency>
</dependencies>

Gradle

dependencies {
  implementation "com.typesafe.akka:akka-actor_2.12:2.5.32"
}

Introduction

An Akka MessageDispatcher is what makes Akka Actors “tick”, it is the engine of the machine so to speak. All MessageDispatcher implementations are also an ExecutionContext, which means that they can be used to execute arbitrary code, for instance Futures.

Default dispatcher

Every ActorSystem will have a default dispatcher that will be used in case nothing else is configured for an Actor. The default dispatcher can be configured, and is by default a Dispatcher with the specified default-executor. If an ActorSystem is created with an ExecutionContext passed in, this ExecutionContext will be used as the default executor for all dispatchers in this ActorSystem. If no ExecutionContext is given, it will fallback to the executor specified in akka.actor.default-dispatcher.default-executor.fallback. By default this is a “fork-join-executor”, which gives excellent performance in most cases.

Looking up a Dispatcher

Dispatchers implement the ExecutionContext interface and can thus be used to run Future invocations etc.

Scala

copysource// for use with Futures, Scheduler, etc.
implicit val executionContext = system.dispatchers.lookup("my-dispatcher")

Java

copysource// this is scala.concurrent.ExecutionContext
// for use with Futures, Scheduler, etc.
final ExecutionContext ex = system.dispatchers().lookup("my-dispatcher");

Setting the dispatcher for an Actor

So in case you want to give your Actor a different dispatcher than the default, you need to do two things, of which the first is to configure the dispatcher:

copysourcemy-dispatcher {
  # Dispatcher is the name of the event-based dispatcher
  type = Dispatcher
  # What kind of ExecutionService to use
  executor = "fork-join-executor"
  # Configuration for the fork join pool
  fork-join-executor {
    # Min number of threads to cap factor-based parallelism number to
    parallelism-min = 2
    # Parallelism (threads) ... ceil(available processors * factor)
    parallelism-factor = 2.0
    # Max number of threads to cap factor-based parallelism number to
    parallelism-max = 10
  }
  # Throughput defines the maximum number of messages to be
  # processed per actor before the thread jumps to the next actor.
  # Set to 1 for as fair as possible.
  throughput = 100
}

Another example that uses the “thread-pool-executor”:

copysourceblocking-io-dispatcher {
  type = Dispatcher
  executor = "thread-pool-executor"
  thread-pool-executor {
    fixed-pool-size = 32
  }
  throughput = 1
}

For more options, see the default-dispatcher section of the configuration.

Then you create the actor as usual and define the dispatcher in the deployment configuration.

Scala

copysourceimport akka.actor.Props
val myActor = context.actorOf(Props[MyActor], "myactor")

Java

copysourceActorRef myActor = system.actorOf(Props.create(MyActor.class), "myactor");

copysourceakka.actor.deployment {
  /myactor {
    dispatcher = my-dispatcher
  }
}

An alternative to the deployment configuration is to define the dispatcher in code. If you define the dispatcher in the deployment configuration then this value will be used instead of programmatically provided parameter.

Scala

copysourceimport akka.actor.Props
val myActor =
  context.actorOf(Props[MyActor].withDispatcher("my-dispatcher"), "myactor1")

Java

copysourceActorRef myActor =
    system.actorOf(Props.create(MyActor.class).withDispatcher("my-dispatcher"), "myactor3");

Types of dispatchers

There are 3 different types of message dispatchers:

• Dispatcher

  This is an event-based dispatcher that binds a set of Actors to a thread pool. It is the default dispatcher used if one is not specified.

  • Sharability: Unlimited
  • Mailboxes: Any, creates one per Actor
  • Use cases: Default dispatcher, Bulkheading
  • Driven by: java.util.concurrent.ExecutorService. Specify using “executor” using “fork-join-executor”, “thread-pool-executor” or the FQCN of an akka.dispatcher.ExecutorServiceConfigurator.

• PinnedDispatcher

  This dispatcher dedicates a unique thread for each actor using it; i.e. each actor will have its own thread pool with only one thread in the pool.

  • Sharability: None
  • Mailboxes: Any, creates one per Actor
  • Use cases: Bulkheading
  • Driven by: Any akka.dispatch.ThreadPoolExecutorConfigurator. By default a “thread-pool-executor”.

• CallingThreadDispatcher

  This dispatcher runs invocations on the current thread only. This dispatcher does not create any new threads, but it can be used from different threads concurrently for the same actor. See CallingThreadDispatcher for details and restrictions.

  • Sharability: Unlimited
  • Mailboxes: Any, creates one per Actor per Thread (on demand)
  • Use cases: Testing
  • Driven by: The calling thread (duh)

More dispatcher configuration examples

Configuring a dispatcher with fixed thread pool size, e.g. for actors that perform blocking IO:

copysourceblocking-io-dispatcher {
  type = Dispatcher
  executor = "thread-pool-executor"
  thread-pool-executor {
    fixed-pool-size = 32
  }
  throughput = 1
}

And then using it:

Scala

copysourceval myActor =
  context.actorOf(Props[MyActor].withDispatcher("blocking-io-dispatcher"), "myactor2")

Java

copysourceActorRef myActor =
    system.actorOf(Props.create(MyActor.class).withDispatcher("blocking-io-dispatcher"));

Another example that uses the thread pool based on the number of cores (e.g. for CPU bound tasks)

copysourcemy-thread-pool-dispatcher {
  # Dispatcher is the name of the event-based dispatcher
  type = Dispatcher
  # What kind of ExecutionService to use
  executor = "thread-pool-executor"
  # Configuration for the thread pool
  thread-pool-executor {
    # minimum number of threads to cap factor-based core number to
    core-pool-size-min = 2
    # No of core threads ... ceil(available processors * factor)
    core-pool-size-factor = 2.0
    # maximum number of threads to cap factor-based number to
    core-pool-size-max = 10
  }
  # Throughput defines the maximum number of messages to be
  # processed per actor before the thread jumps to the next actor.
  # Set to 1 for as fair as possible.
  throughput = 100
}

A different kind of dispatcher that uses an affinity pool may increase throughput in cases where there is relatively small number of actors that maintain some internal state. The affinity pool tries its best to ensure that an actor is always scheduled to run on the same thread. This actor to thread pinning aims to decrease CPU cache misses which can result in significant throughput improvement.

copysourceaffinity-pool-dispatcher {
  # Dispatcher is the name of the event-based dispatcher
  type = Dispatcher
  # What kind of ExecutionService to use
  executor = "affinity-pool-executor"
  # Configuration for the thread pool
  affinity-pool-executor {
    # Min number of threads to cap factor-based parallelism number to
    parallelism-min = 8
    # Parallelism (threads) ... ceil(available processors * factor)
    parallelism-factor = 1
    # Max number of threads to cap factor-based parallelism number to
    parallelism-max = 16
  }
  # Throughput defines the maximum number of messages to be
  # processed per actor before the thread jumps to the next actor.
  # Set to 1 for as fair as possible.
  throughput = 100
}

Configuring a PinnedDispatcher:

copysourcemy-pinned-dispatcher {
  executor = "thread-pool-executor"
  type = PinnedDispatcher
}

And then using it:

Scala

copysourceval myActor =
  context.actorOf(Props[MyActor].withDispatcher("my-pinned-dispatcher"), "myactor3")

Java

copysourceActorRef myActor =
    system.actorOf(Props.create(MyActor.class).withDispatcher("my-pinned-dispatcher"));

Note that thread-pool-executor configuration as per the above my-thread-pool-dispatcher example is NOT applicable. This is because every actor will have its own thread pool when using PinnedDispatcher, and that pool will have only one thread.

Note that it’s not guaranteed that the same thread is used over time, since the core pool timeout is used for PinnedDispatcher to keep resource usage down in case of idle actors. To use the same thread all the time you need to add thread-pool-executor.allow-core-timeout=off to the configuration of the PinnedDispatcher.

Blocking Needs Careful Management

In some cases it is unavoidable to do blocking operations, i.e. to put a thread to sleep for an indeterminate time, waiting for an external event to occur. Examples are legacy RDBMS drivers or messaging APIs, and the underlying reason is typically that (network) I/O occurs under the covers.

Scala

copysourceclass BlockingActor extends Actor {
  def receive = {
    case i: Int =>
      Thread.sleep(5000) //block for 5 seconds, representing blocking I/O, etc
      println(s"Blocking operation finished: ${i}")
  }
}

Java

copysourceclass BlockingActor extends AbstractActor {

  @Override
  public Receive createReceive() {
    return receiveBuilder()
        .match(
            Integer.class,
            i -> {
              Thread.sleep(5000); // block for 5 seconds, representing blocking I/O, etc
              System.out.println("Blocking operation finished: " + i);
            })
        .build();
  }
}

When facing this, you may be tempted to wrap the blocking call inside a Future and work with that instead, but this strategy is too simple: you are quite likely to find bottlenecks or run out of memory or threads when the application runs under increased load.

Scala

copysourceclass BlockingFutureActor extends Actor {
  implicit val executionContext: ExecutionContext = context.dispatcher

  def receive = {
    case i: Int =>
      println(s"Calling blocking Future: ${i}")
      Future {
        Thread.sleep(5000) //block for 5 seconds
        println(s"Blocking future finished ${i}")
      }
  }
}

Java

copysourceclass BlockingFutureActor extends AbstractActor {
  ExecutionContext ec = getContext().getDispatcher();

  @Override
  public Receive createReceive() {
    return receiveBuilder()
        .match(
            Integer.class,
            i -> {
              System.out.println("Calling blocking Future: " + i);
              Future<Integer> f =
                  Futures.future(
                      () -> {
                        Thread.sleep(5000);
                        System.out.println("Blocking future finished: " + i);
                        return i;
                      },
                      ec);
            })
        .build();
  }
}

Problem: Blocking on default dispatcher

The key here is this line:

implicit val executionContext: ExecutionContext = context.dispatcher

ExecutionContext ec = getContext().getDispatcher();

Using context.dispatcher getContext().getDispatcher() as the dispatcher on which the blocking Future executes can be a problem, since this dispatcher is by default used for all other actor processing unless you set up a separate dispatcher for the actor.

If all of the available threads are blocked, then all the actors on the same dispatcher will starve for threads and will not be able to process incoming messages.

Let’s set up an application with the above BlockingFutureActor and the following PrintActor.

Scala

copysourceclass PrintActor extends Actor {
  def receive = {
    case i: Int =>
      println(s"PrintActor: ${i}")
  }
}

Java

copysourceclass PrintActor extends AbstractActor {
  @Override
  public Receive createReceive() {
    return receiveBuilder()
        .match(
            Integer.class,
            i -> {
              System.out.println("PrintActor: " + i);
            })
        .build();
  }
}

Scala

copysourceval actor1 = system.actorOf(Props(new BlockingFutureActor))
val actor2 = system.actorOf(Props(new PrintActor))

for (i <- 1 to 100) {
  actor1 ! i
  actor2 ! i
}

Java

copysourceActorRef actor1 = system.actorOf(Props.create(BlockingFutureActor.class));
ActorRef actor2 = system.actorOf(Props.create(PrintActor.class));

for (int i = 0; i < 100; i++) {
  actor1.tell(i, ActorRef.noSender());
  actor2.tell(i, ActorRef.noSender());
}

Here the app is sending 100 messages to BlockingFutureActor and PrintActor and large numbers of akka.actor.default-dispatcher threads are handling requests. When you run the above code, you will likely to see the entire application gets stuck somewhere like this:

>　PrintActor: 44
>　PrintActor: 45

PrintActor is considered non-blocking, however it is not able to proceed with handling the remaining messages, since all the threads are occupied and blocked by the other blocking actor - thus leading to thread starvation.

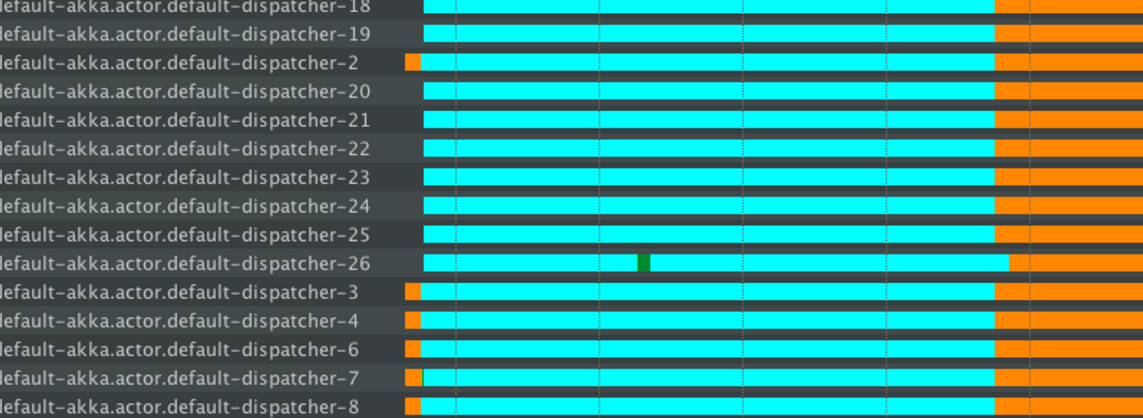

In the thread state diagrams below the colours have the following meaning:

• Turquoise - Sleeping state
• Orange - Waiting state
• Green - Runnable state

The thread information was recorded using the YourKit profiler, however any good JVM profiler has this feature (including the free and bundled with the Oracle JDK VisualVM, as well as Oracle Flight Recorder).

The orange portion of the thread shows that it is idle. Idle threads are fine - they’re ready to accept new work. However, large amount of turquoise (blocked, or sleeping as in our example) threads is very bad and leads to thread starvation.

In the above example we put the code under load by sending hundreds of messages to the blocking actor which causes threads of the default dispatcher to be blocked. The fork join pool based dispatcher in Akka then attempts to compensate for this blocking by adding more threads to the pool (default-akka.actor.default-dispatcher 18,19,20,...). This however is not able to help if those too will immediately get blocked, and eventually the blocking operations will dominate the entire dispatcher.

In essence, the Thread.sleep operation has dominated all threads and caused anything executing on the default dispatcher to starve for resources (including any actor that you have not configured an explicit dispatcher for).

Solution: Dedicated dispatcher for blocking operations

One of the most efficient methods of isolating the blocking behavior such that it does not impact the rest of the system is to prepare and use a dedicated dispatcher for all those blocking operations. This technique is often referred to as as “bulk-heading” or simply “isolating blocking”.

In application.conf, the dispatcher dedicated to blocking behavior should be configured as follows:

copysourcemy-blocking-dispatcher {
  type = Dispatcher
  executor = "thread-pool-executor"
  thread-pool-executor {
    fixed-pool-size = 16
  }
  throughput = 1
}

A thread-pool-executor based dispatcher allows us to set a limit on the number of threads it will host, and this way we gain tight control over how at-most-how-many blocked threads will be in the system.

The exact size should be fine tuned depending on the workload you’re expecting to run on this dispatcher as well as the number of cores of the machine you’re running the application on. Usually a small number around the number of cores is a good default to start from.

Whenever blocking has to be done, use the above configured dispatcher instead of the default one:

Scala

copysourceclass SeparateDispatcherFutureActor extends Actor {
  implicit val executionContext: ExecutionContext = context.system.dispatchers.lookup("my-blocking-dispatcher")

  def receive = {
    case i: Int =>
      println(s"Calling blocking Future: ${i}")
      Future {
        Thread.sleep(5000) //block for 5 seconds
        println(s"Blocking future finished ${i}")
      }
  }
}

Java

copysourceclass SeparateDispatcherFutureActor extends AbstractActor {
  ExecutionContext ec = getContext().getSystem().dispatchers().lookup("my-blocking-dispatcher");

  @Override
  public Receive createReceive() {
    return receiveBuilder()
        .match(
            Integer.class,
            i -> {
              System.out.println("Calling blocking Future on separate dispatcher: " + i);
              Future<Integer> f =
                  Futures.future(
                      () -> {
                        Thread.sleep(5000);
                        System.out.println("Blocking future finished: " + i);
                        return i;
                      },
                      ec);
            })
        .build();
  }
}

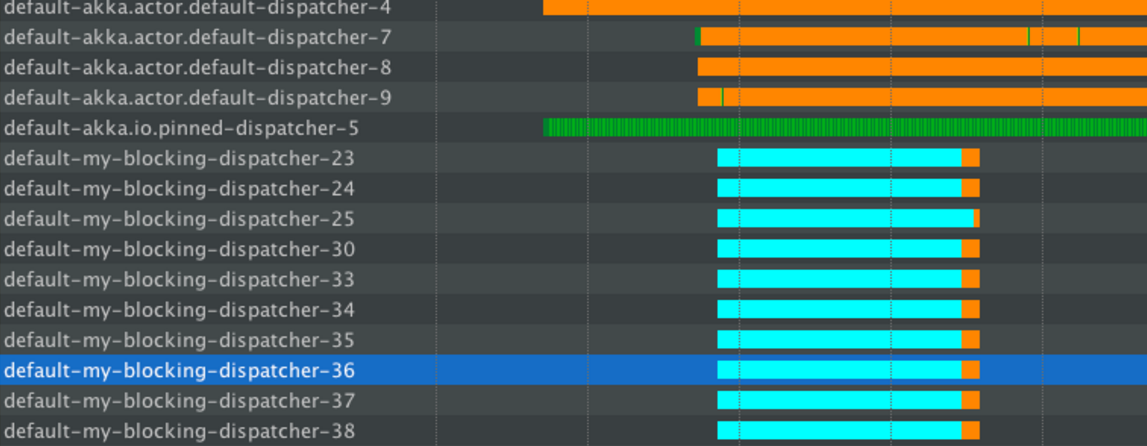

The thread pool behavior is shown in the below diagram.

Messages sent to SeparateDispatcherFutureActor and PrintActor are handled by the default dispatcher - the green lines, which represent the actual execution.

When blocking operations are run on the my-blocking-dispatcher, it uses the threads (up to the configured limit) to handle these operations. The sleeping in this case is nicely isolated to just this dispatcher, and the default one remains unaffected, allowing the rest of the application to proceed as if nothing bad was happening. After a certain period idleness, threads started by this dispatcher will be shut down.

In this case, the throughput of other actors was not impacted - they were still served on the default dispatcher.

This is the recommended way of dealing with any kind of blocking in reactive applications.

For a similar discussion specific about Akka HTTP refer to, Handling blocking operations in Akka HTTPHandling blocking operations in Akka HTTP.

Available solutions to blocking operations

The non-exhaustive list of adequate solutions to the “blocking problem” includes the following suggestions:

• Do the blocking call within an actor (or a set of actors) managed by a router, making sure to configure a thread pool which is either dedicated for this purpose or sufficiently sized.
• Do the blocking call within a Future, ensuring an upper bound on the number of such calls at any point in time (submitting an unbounded number of tasks of this nature will exhaust your memory or thread limits).
• Do the blocking call within a Future, providing a thread pool with an upper limit on the number of threads which is appropriate for the hardware on which the application runs, as explained in detail in this section.
• Dedicate a single thread to manage a set of blocking resources (e.g. a NIO selector driving multiple channels) and dispatch events as they occur as actor messages.

The first possibility is especially well-suited for resources which are single-threaded in nature, like database handles which traditionally can only execute one outstanding query at a time and use internal synchronization to ensure this. A common pattern is to create a router for N actors, each of which wraps a single DB connection and handles queries as sent to the router. The number N must then be tuned for maximum throughput, which will vary depending on which DBMS is deployed on what hardware.
